Products - HD Rail, Loco & Carriage CCTV
Vidistor
IP66 Rail Pro Extreme
4/8/16 channel waterproof DVR
Vidistor
IP66 Extreme NVR
Realtime Network Video Recorder
Vidistor
HD Rail Pro Compact NVR
Realtime Network Video Recorder

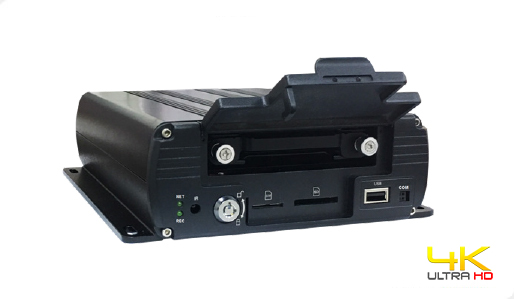

Vidistor
Compact H.265 - 4CH NVR
Vidistor
Compact H.265 - 8CH NVR
Vidistor
Compact H.265 - 4CH HVR
Vidistor
Compact H.265 - 8CH HVR
Vidistor
Compact HD Series
Full Hybrid DVR/NVR
VidiSafe
Compact Pro
Automotive power distribution unit for use with Vidistor Compact DVR
VidiSafe
UPS / Charger
140 Watt Rail DC/DC UPS / Charger with 12VDC input and 13.8VDC Output
VidiSafe
DC-DC Converter
Incorporates all necessary input/output, signalling and protection features
CAM
Switch PoE
IP66
WIMS Client - Rail
3G/WLAN Wireless Router with a custom embedded Linux OS
WIMS Lite Pro
Client - Automotive
3G/WLAN Wireless Router
WLAN / 3G / GPS
Roof Antenna
Screw mount GPS/GSM/Wi-Fi combination antenna
HD-IP
Camera
FULL HD 1080P
IP camera VR Mini-dome with POE
Internal Camera
Ultra-small with built-in IR Lighting
1080p AHD
Dome Camera
5MP 360°
Fisheye IP Camera

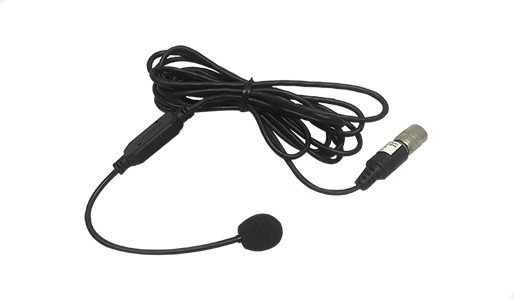

DVR Microphone
With Pre-amplifier
Rail
DOO Camera

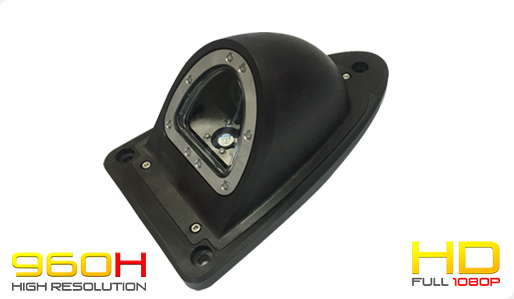

Rail
Pantograph Camera
Rail

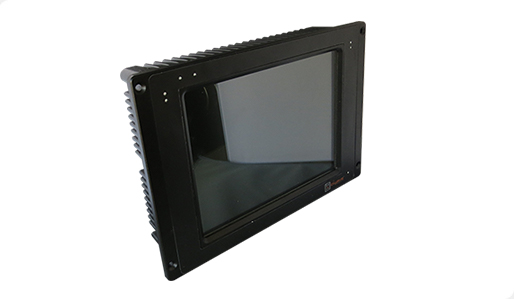

DOO CCTV Monitor

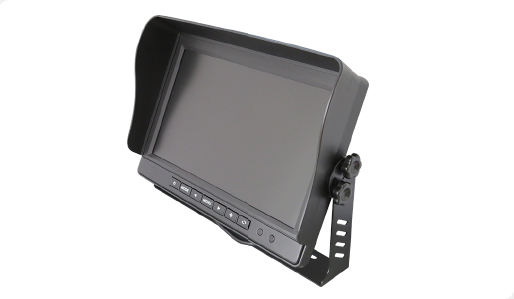

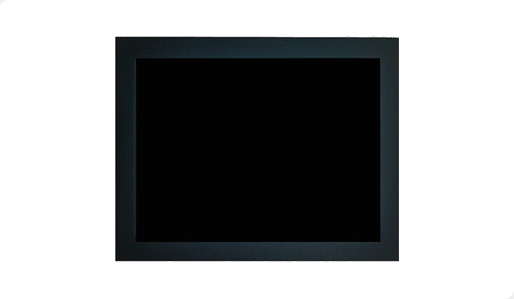

Rail
Drivers TFT 10" Monitor

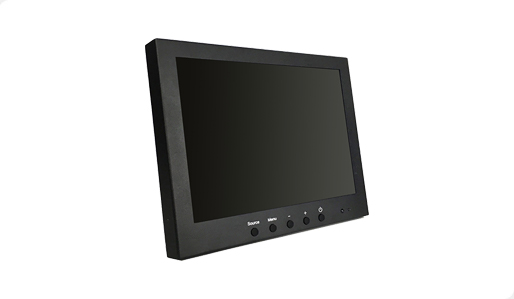

10.1" Metal Case
HD Analogue Monitor
10.4" Sunlight Readable
Touch Screen Industrial Monitor

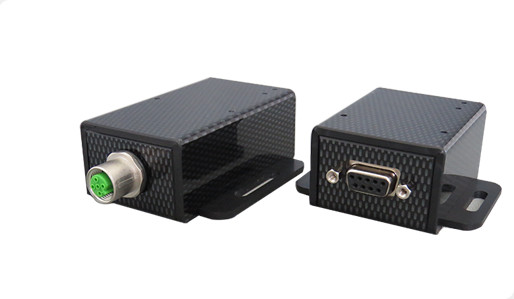

DVR
In-line GPS Receiver
Railway Freight

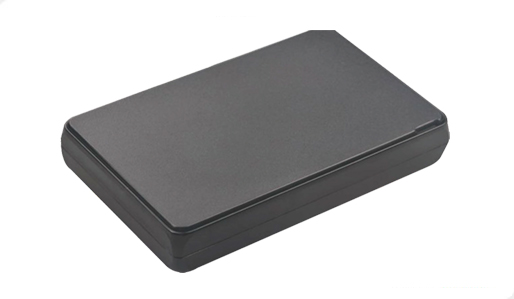

Wagon GPS Tracker
Video Analytics
People Counting Camera
Click thumbnails to view product detail below

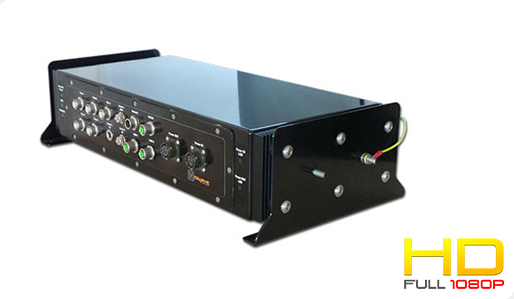

Vidistor IP66 Rail Pro Extreme
Realtime 4/8/16 channel H.264 DVR
Build to order, and to the specification you request, the OEM Range can be customised to feature the key elements you require. Featuring a customised enclosure with ODM Branding, Customisable hardware and software specification. Extended performance options, such as Rail T1 Temp or MIL-Spec Vibration. The Vidistor can be customised further with Branded Software & Packaging making this a truly white label product.
Key Features
- H.264 Compression (Main Profile)
- Real-time Recording at CIF quality (all channels)
- Selectable Record Quality & Frame Rate per camera / per mode (normal & alarm): CIF (D1), 2CIF and 4CIF supported
- Pentaplex Operation: (Supports Live / Record / Playback/ Transmit modes simultaneously)
- Dual Stream – Optimises Network SpeedS - 3G/WLAN
- Supports Full management and connectivity - 3G/WLAN
- Supports RS-232 or RS485 data Text Insertion as Meta tag
- Friendly Local Set-Up / Support Interface – USB/Bluetooth/2.4GHz mouse
- S.M.A.R.T (Self Monitoring Analysis & Reporting Technology)
- WCS (Watermark Check System) – Anti-Tamper for admissible evidence in court
- Waterproof IP66 construction for Rail and Marine Fleet
- Extreme Temperature Range (-40 ~ +75°C)
- Bespoke Internal Climate Control
- Customisable Mil and Rail spec connector panel
- Extreme vibration and temperature certified

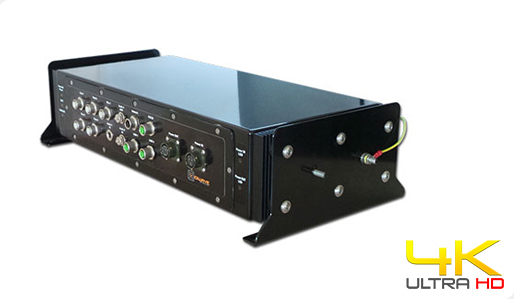

Vidistor IP66 Extreme NVR
Realtime Network Video Recorder
Key Features
- ESATA Removable HDD instant back-up option
- H.264 HP video compression standard
- ONVIF 2.0 and 2.2 Standard compliant
- Records up to 36 IP cameras
- Supports record resolutions up to 5MP (dependant on config)
- Delivers 15 X Digital Zoom - Live and Playback
- Supports USB and FLASH storage as back-up additional options
- Supports remote video management and system configuration via 3G and WLAN
- Supports remote system health and pro-active diagnostics
- Supports automated back-up of video to Cloud or local FTP servers
- Built-in DC rail / automotive specification power supply 10 ~ 28 VDC
- Built-in spike / over-voltage and reverse polarity protection with self-healing PET's.
- Waterproof IP66 construction for Rail and Marine fleets
- Extreme Temperature range (-40 ~ +75°C)
- Bespoke internal Climate Control
- Customisable Mil and rail Spec connector panel

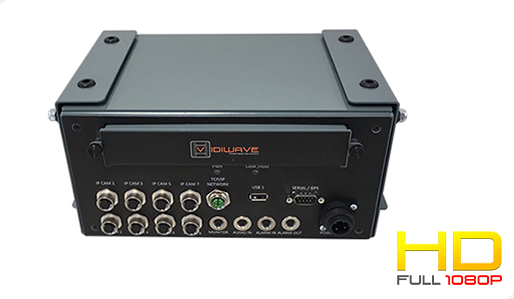

Vidistor HD Rail Pro Compact NVR
Realtime Network Video Recorder
Key Features
- Digital Watermark
- Removable HDD - for instant hot-swap back-up
- H.264 HP video compression standard
- ONVIF 2.0 and 2.2 Standard compliant
- Records up to 8 IP cameras
- Supports record resolutions up to 5MP (dependant on config)
- Delivers 15 X Digital Zoom - Live and Playback
- Supports USB and FLASH storage as back-up additional options
- Supports remote video management and system configuration via 3G and WLAN - via Vidiwave WIMS module
- Supports remote system health and pro-active diagnostics - 3G / WLAN
- Supports automated back-up of video to Cloud or local FTP servers - 3G / WLAN
- Proprietary 12V PoE Injection via M12
- Optional GPS Tracking via RS-232

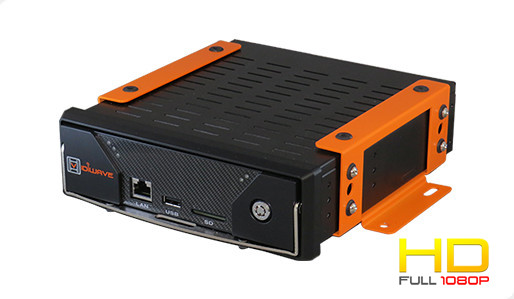

Vidistor Compact-HD
Full Hybrid Mobile DVR/NVR with GPS Tracking
The Ultra Compact single din chassis, makes this product easy to install and dashmountable in most auotmotive applications. Featuring GPS Tracking with Live Video, built shock protection and G-Force Sensing. Up to 25IPS Per camera. This robust well build product is at the forefront of space saving design. Feature packed with embedded linux operating system and up to 2TB of internal storage
Key Features
- Embedded Linux OS for reliability
- H.264 Compression for analogue cameras
- Compact 1DIN size with removable DVR dock design
- Dual Stream - Optimising network transfer speeds via WLAN and 3G
- User Friendly GUI - Flexible, Easy to use
- Advanced Remote Management Software integrates all video and CCTV diagnostics
- S.M.A.R.T: Self-Monitoring Analysis and Reporting Technology - via RMS
- Mobile Device Support: iPhone, Android
- Spot monitor output for in-vehicle display
- Audio recording: to support video evidence
- Built-in Vibration Protection
- Built-in Automotive Grade 12-24V PSU
- Built-in support for GPS tracking with video image live and playback
- Built in G-sensors via GPS for embedded playback with video

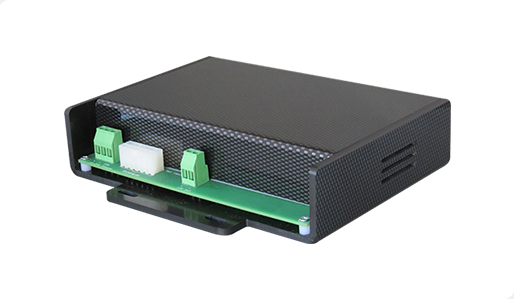

VidiSafe Compact Pro
Automotive power distribution unit for use with Vidistor Compact DVR
This unique technology features permanent electrical spike monitoring, positive and negative earth fault protection. This product powers and protects CCTV Camera, WLAN, 3G Modules & CCTV Monitors. This appliance is also EN-55022-06-A & FCC Part 15-B compliant
Key Features
- Wide Range PSU/PDU protection for 12VDC and 24VDC vehicles
- Permanent spike monitoring technology
- Positive and Negative Earth fault protection
- Thermal fuse, self-healing technology
- Full reverse polarity protection
- Easy-wire installation system
- 12VDC 7.5 Amp output for ancillary devices
- Powers, protects and isolates CCTV cameras
- Powers, protects and isolates WLAN / 3G modules
- Powers, protects and isolates CCTV monitors
- EN-55022-06-A & FCC Part 15-B compliant

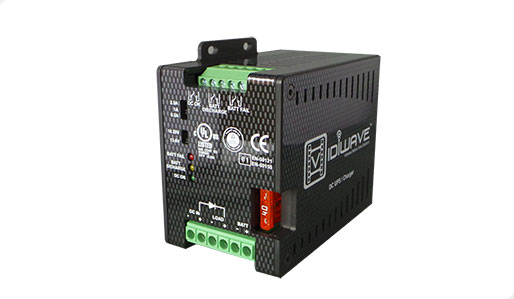

VidiSafe UPS / Charger
140 Watt Rail DC/DC UPS / Charger with 12VDC input and 13.8VDC Output
Key Features
- Compact Size
- Rugged Industrial Quality Chassis
- Power Output and Float Charge for Battery Back-up
- Adjustable Low-voltage operation
- Built-in Low battery disconnect protection circuit
- Low Battery - Alarm Output
- Charger Fail - Alarm Output
- Rail Standards Certification
- 4 ~ 24 hour Battery Back-up (depending on battery option selected)

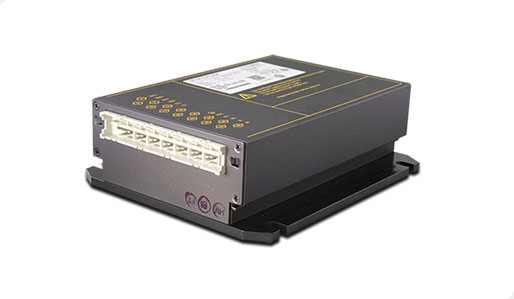

VidiSafe DC-DC Converter
Incorporates all necessary input/output, signalling and protection features
Key Features
- Extremely wide input voltage range from 12 - 168VDC in the same model
- RoHS compliant
- Class I equipment
- Input over and programmable under voltage lockout
- Shutdown function
- Inrush current limitation
- 10 ms hold-up time
- Very high efficiency up to 94%
- Immunity according to IEC 61000-4-2, -3, -4, -5, -6
- ALL PCBs protected by lacquer
CAM Switch PoE
Key Features
- Meets EN50155 standard
- Designed for rail transportation applications specifically
- 8×10/100M M12 ports
- No. 1 and No. 2 ports support Bypass power protection
- 12/24/48 VDC or 72/96/110VDC Power Inputs
- Built in overcurrent protection, reverse polarity protection
- -40 to 75oC operating temperature range
- No fan, low consumption, industrial design standard, industrial grade electronic components
- Environmental protection & lead-free production
- Hard aluminum alloy case
- DIN-rail and wall mountable
- IP Rating up to IP40
- Zero packet loss in 72 hours full load flow test

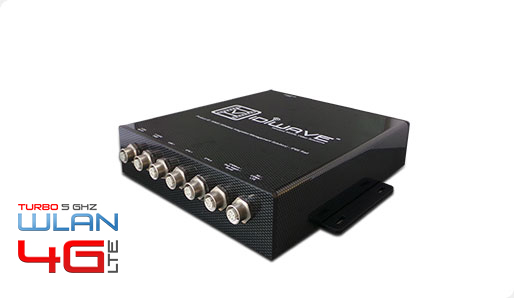

IP66 WIMS Client - Rail
3G/WLAN Wireless Router with a custom embedded Linux OS
Key Features
- IP66 Rated Enclosure
- IP66 M12 Connectors
- Zero Config
- Ultra Secure P2P VPN Technology protects 3G / CDMA / WLAN and LAN to (AES-256) Mil-Spec standards
- Built in Embeded Linux OS for robustness and reliability
- 4GB Solid state compact flash memory
- Remote Health Checking of Depot WLAN System via GPRS / 3G and ADSL
- Supports fixed IP multi ports addressing via DHCP sim cards
- PUSH Diagnostics / Alerts and Exception Reporting direct to your Maintenance Provider
- Embedded Linux Remote Agent syncs information to a Headend Server to give instant Fault Visability and Reporting via 3G and WLAN
- Supports Full Video Management including Playback / Preview and Backup via GPRS / 3G and WLAN
- Integrated Video Backup to a Secure Web-Based Video Vault with Video Sharing Feature for Secure CCTV Evidence Distribution
WIMS Lite Pro Client Module - Automotive
3G/WLAN Wireless Router
Key Features
- 3G/4G LTE data transmission
- Active auto connect
- Embedded watchdog , Auto recovery
- 2*2 4G/WIFI MIMO antenna
- Integrate 3G/4G LTE,WIFI,GPS feature
- One WAN, Five LAN(1LAN/1 Gbit LAN & 4 LAN/100Mbps) ports, Support VLAN,LAN Ethernet port
- One console port, One USB port,RS232 or RS485 Interface,4 line GPIOs
- SD data storage (Optional)
- With two SIM card slot
- Remote management platform
- Supports wifi 802.11AC, 1.2Gbit
- Supports 50 WiFi users sharing
- Firmware version: Linux or Openwrt

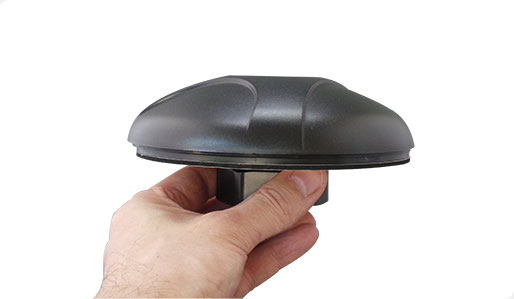

WLAN / 3G / GPS Roof Antenna
Screw mount GPS/GSM/Wi-Fi combination antenna
Key Features
- Single antenna provides cellular / WLAN + GPS for tracking
- IP67 rated
- High impact ABS plastic for long-life / durability
- Low profile - To reduce gauge increase considerations
- Vehicle wash proof
- Fully isolated from chasis earth faults
- RoHS Compliant

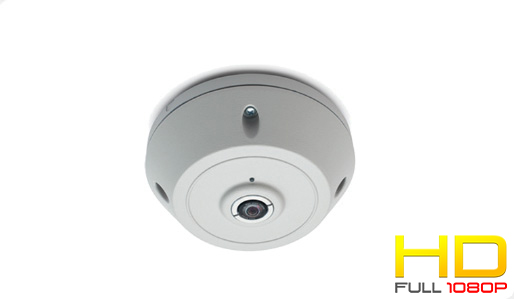

5MP 360° Fisheye IP Camera
Key Features
- 185˚ Fisheye Lens
- 10 Preset positions and 10 Privacy zones
- Ultra High Image Quality
- Alarm in / out
- Vandal resistant die-cast housing (PanoCam360B)
- MJPEG, MPEG4, H.264 streaming
- 12.5 Frames Per Second
- 5 Watt PoE or 12Vdc
- Indoor, Outdoor, Surface or Flushmount housing options
- Low profile housing option available for transport applications
- IP54 & IP66 Housing
HD-IP Camera
Key Features
- H.264 Full Frame at HD1080p
- Video Compression: H.264, MJPEG
- Dual Stream
- Ultra Image Quality
- Burnt-in Text, Video Motion Detection Support
- microSD/SDHC card slot
- Comprehensive SDK Support
- Embedded Video Analytics
- ONVIF Support (Profile S, Profile G)

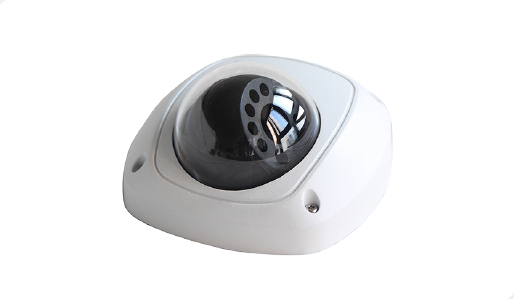

FULL HD 1080P IP camera VR Mini-dome with POE
Key Features
- 1/2.8 3MP sensor
- Supports H264, H.265
- Supports dual stream.
- Main stream:2304×1296,1920×1080
- Sub-stream: D1(704*576)/ 360P(640*360 )/ CIF(352*288)
- Supports D-WDR, 3D-NR, BLC, Auto-White balance for different environments
- Supports ONVIF
- Supports image shutter, 4 Shutter areas
- Supports audio input
- Supports motion detection
- Supports OSD setting and network programming via browser UI
- Supports mobile surveillance via VMS
- Supports stepless IR and white light mode

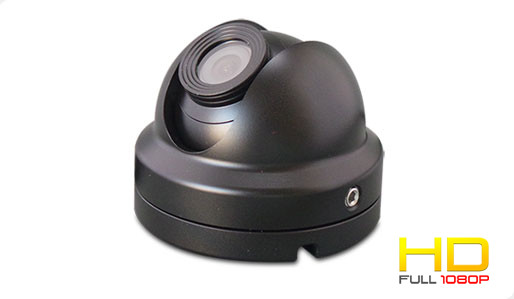

1080p AHD Dome Camera
Key Features
- 1/3” 2.1 Megapixel Sony HD Image Sensor
- Zero motion blur on moving objects
- 2DNR / DNR Level (0~100) Adjustment / SMART NR
- Ultra low light 0.02Lux (Sens-up x30)
- 1080P and 720P HD resolutions available
- IP66 snap lock quick fit connector system
- Vandal resistant design
- Waterproof IP66 housing
Internal Camera
Ultra-small with built in IR Lighting

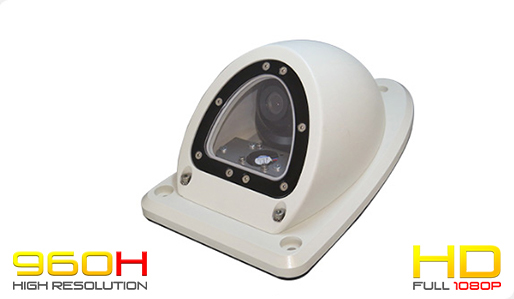

Rail DOO Camera
Key Features
- True Day/Night Colour DSP Camera
- Wide Dynamic Range for extreme headlight suppression
- Ceiling and wall mounted flexibility
- IP66 Rated - ideal for external or damp/air conditioned environments
- 3D Gimbal delivers maximum flexibility lens rotation and placement
- Toughened scratch resistance window glass
- Ultra-High Resolution - 600TVL
- Die-cast aluminium housing for lightness and strength
- 12VDC low power consumption
Rail Pantograph Camera
Key Features
- True Day/Night Colour DSP Camera
- Wide Dynamic Range for extreme headlight suppression
- Ceiling and wall mounted flexibility
- IP66 Rated - ideal for external or damp/air conditioned environments
- 3D Gimbal delivers maximum flexibility lens rotation and placement
- Toughened scratch resistance window glass
- Ultra-High Resolution - 700TVL
- Die-cast aluminium housing for lightness and strength
- 12VDC low power consumption
- Ultra Wide Operational Range
Rail DOO CCTV Monitor
Key Features
- 10.4” 4:3 TFT LCD with capacitive touch screen
- 1024 x 768 pixels resolution
- Intel® Atom™ processor
- 2 Fast Ethernet, 2 USB ports
- Wide-range PSU, 12/24 VDC nom.
- -40 to +85°C operating temperature
- Fanless and maintenance-free design
- Prepared for E1 (automotive), IP65 (front), IP20 (rear)
- Embedded Windows® 7 - Professsional Edition
Rail Drivers TFT 10" Monitor
10.1" Metal Case HD Analogue Monitor
Key Features
- HD resolution display
- Slimline panel design
- TVI/CVI/AHD/CVBS supported
- Designed for 24/7 operation
- Mean time before failure - 5 years +
- Supports multiple HD video input standards
- User adjustable display functions
- Rugged metal case design
10.4" Sunlight Readable Touch Screen Industrial Monitor
Key Features
- High brightness ultra-low power LED backlight.
- Sun-readable.
- Touch screen optional.
- 10 Steps configurable backlight dimming
- Autopower on/off by VGA signal.
- Native resolution1024x768px.
- One composite video input with autopower/autoswitch.
- All-in-one cable, 2.5 and 4.5m length options.
- Power 9-36V, including noise/spikes filters.
- Ultra low power consumption.
- Wide temperature range.
- Shock/Vibration proof.
- Aluminium chassis and rear side.
- Metal folding chassis.
- VESA 75mm mounting holes
- Supplied with Flush-mount side-arm brackets
DVR Microphone
With pre-amplifier
Key Features
- Compact size – Ideal for discrete / non intrusive installation
- Built-in powered Pre-amplifier
- Low-voltage operation
- Pre-wired to utilise existing camera 12VDC power feeds, Ideal for system upgrades
- Adaptive Noise Gate Threshold (to reduce background noise)
- Adaptive Compression Level to Optimise Sound Quality
- Auto limiting feature – Prevents ADC overload
- Adjustable release time
- Low noise and Distortion
- 20kHz Bandwidth (+/- 1 dB)
- Optional IP65 rated version available on request
DVR In-line GPS Receiver
Key Features
- 65 Channel GPS L1 C/A Code
- Perform 8 million time-frequency hypothesis testing per second
- Open sky hot start 1 sec, cold start 29 sec
- Signal detection better than -161dBm
- Multipath detection and suppression
- Accuracy 2.5m CEP
- Maximum update rate 10Hz
- Tracking current ~23mA
- Provides a 10pin header to easily connect to PCB
- 5m CEP Accuracy
- RoHS compliance
- M12 connector for rolling stock regulation compliant
Railway Freight Wagon GPS Tracker
Compact H.265 4CH Mobile NVR
Key Features
- Full HD recording at 1080p using H.265 main profile compression.
- Built-in Power over Ethernet (PoE)
- Hexaplex Operation - Simultaneous: Record / Live / Video back-up / Local control and remote access at the same time.
- Each camera input has a separately definable record frame rate.
- Support for both ONVIF and RTSP protocols.
- Smart-Search function that allows the user to combine multiple search criteria
- HDMI local monitor output supporting 4K display resolution
- VGA local monitor output supporting 2560 x 1600 resolution
- Removable HDD caddy that support HDD and SSD.
- Supports direct audio via RCA and embedded audio streams via IP camera
- Supports 4 local alarm inputs and a relay output
- Built-in GPS to track and record the speed and location of the vehicle
- Built-in G-Sensors to record and report acceleration, braking, left/right turns and collisions.
- User definable delay power off - post ignition off
- Built-in 3G/4G option
- Built-in WiFi option
- Simple on-screen menus to setup NVR
- Optional Media Management Module - GPS based route information and video advertising
- Optional GPS route violation module
Compact H.265 8CH Mobile NVR
Key Features
- Full HD recording at 1080p using H.265 main profile compression.
- Built-in Power over Ethernet (PoE)
- Hexaplex Operation - Simultaneous: Record / Live / Video back-up / Local control and remote access at the same time.
- Each camera input has a separately definable record frame rate.
- Support for both ONVIF and RTSP protocols.
- Smart-Search function that allows the user to combine multiple search criteria
- HDMI local monitor output supporting 4K display resolution
- VGA local monitor output supporting 2560 x 1600 resolution
- Removable HDD caddy that support HDD and SSD.
- Supports direct audio via RCA and embedded audio streams via IP camera
- Supports 4 local alarm inputs and a relay output
- Built-in GPS to track and record the speed and location of the vehicle
- Built-in G-Sensors to record and report acceleration, braking, left/right turns and collisions.
- User definable delay power off - post ignition off
- Built-in 3G/4G option
- Built-in WiFi option
- Simple on-screen menus to setup NVR
- Optional Media Management Module - GPS based route information and video advertising
- Optional GPS route violation module
Compact H.265 4CH Mobile HVR
Key Features
- Full HD recording at 1080p using H.265 main profile compression.
- Built-in Power over Ethernet (PoE)
- Hexaplex Operation - Simultaneous: Record / Live / Video back-up / Local control and remote access at the same time.
- Each camera input has a separately definable record frame rate.
- Support for both ONVIF and RTSP protocols.
- Smart-Search function that allows the user to combine multiple search criteria
- HDMI local monitor output supporting 4K display resolution
- VGA local monitor output supporting 2560 x 1600 resolution
- Removable HDD caddy that support HDD and SSD.
- Supports direct audio via RCA and embedded audio streams via IP camera
- Supports 4 local alarm inputs and a relay output
- Built-in GPS to track and record the speed and location of the vehicle
- Built-in G-Sensors to record and report acceleration, braking, left/right turns and collisions.
- User definable delay power off - post ignition off
- Built-in 3G/4G option
- Built-in WiFi option
- Simple on-screen menus to setup NVR
- Optional Media Management Module - GPS based route information and video advertising
- Optional GPS route violation module
Compact H.265 8CH Mobile HVR
Key Features
- Full HD recording at 1080p using H.265 main profile compression.
- Built-in Power over Ethernet (PoE)
- Hexaplex Operation - Simultaneous: Record / Live / Video back-up / Local control and remote access at the same time.
- Each camera input has a separately definable record frame rate.
- Support for both ONVIF and RTSP protocols.
- Smart-Search function that allows the user to combine multiple search criteria
- HDMI local monitor output supporting 4K display resolution
- VGA local monitor output supporting 2560 x 1600 resolution
- Removable HDD caddy that support HDD and SSD.
- Supports direct audio via RCA and embedded audio streams via IP camera
- Supports 4 local alarm inputs and a relay output
- Built-in GPS to track and record the speed and location of the vehicle
- Built-in G-Sensors to record and report acceleration, braking, left/right turns and collisions.
- User definable delay power off - post ignition off
- Built-in 3G/4G option
- Built-in WiFi option
- Simple on-screen menus to setup NVR
- Optional Media Management Module - GPS based route information and video advertising
- Optional GPS route violation module
Video Analytics People Counting Camera
Key Features
- Remote configuration and upgrade (via 3G option)
- Up to 97% accuracy
- Works well counting crowds and tight groups of people
- Not affected by clothing colours or passenger heights
- Built-in IR LED Lighting to ensure accurate counts at night.
- High reliability with low maintenance
- Accurately counts people on and off vehicles with multiple doors.
- Master / Slave configuration with linked cameras.
- Reports total people on-board for all linked cameras.
- Automatically generate real-time web-based occupancy reports via optional 3G / WLAN router.
- Provides operators with effective ticket / cash flow management for each vehicle / driver.
- IP65 rated camera housings
- Optional back-office diagnostics software via cloud.
- SIMPLE plug and play installation.
- Count links to vehicle ignition (ACC)
- Wide range Automotive grade PSU 9~36V DC with built-in spike protection.
View all products in this range
