Products -
Passenger Counting
Video Analytics
People Counting Camera
Video Analytics
Platform People Counting Camera
WIMS Lite
Client - Automotive
3G/WLAN Wireless Router
Click thumbnails to view product detail below
Video Analytics
People Counting Camera
Key Features
Remote configuration and upgrade (via 3G option)
Up to 97% accuracy
Works well counting crowds and tight groups of people
Not affected by clothing colours or passenger heights
Built-in IR LED Lighting to ensure accurate counts at night.
High reliability with low maintenance
Accurately counts people on and off vehicles with multiple doors.
Master / Slave configuration with linked cameras.
Reports total people on-board for all linked cameras.
Automatically generate real-time web-based occupancy reports via optional 3G / WLAN router.
Provides operators with effective ticket / cash flow management for each vehicle / driver.
IP65 rated camera housings
Optional back-office diagnostics software via cloud.
SIMPLE plug and play installation.
Count links to vehicle ignition (ACC)
Wide range Automotive grade PSU 9~36V DC with built-in spike protection.
Download the full technical specific datasheet in PDF format

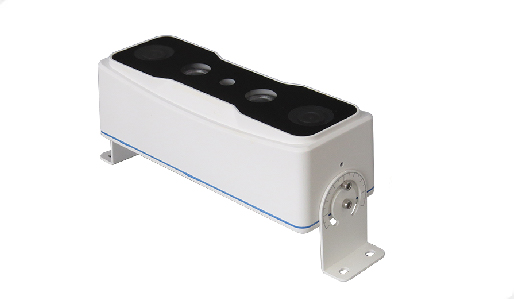

Video Analytics
Platform People Counting Camera
Key Features
Remote configuration and upgrade (via TCP/IP)
Up to 97% accuracy
Works well counting crowds and tight groups of people
Not affected by clothing colours or shopper heights
Built-in IR LED Lighting to ensure accurate counts at night.
High reliability with low maintenance
Accurately counts people in and out of stores with multiple doors.
Master / Slave configuration with linked cameras.
Reports total people on platform for all linked cameras.
Automatically generate real-time web-based occupancy reports via local internet router.
Provides management with hourly head-counts for analysis against store sales
IP65 rated camera housings
Optional back-office diagnostics software via cloud.
SIMPLE plug and play installation.
Wide range PSU 9~36V DC with built-in spike protection.
Download the full technical specific datasheet in PDF format

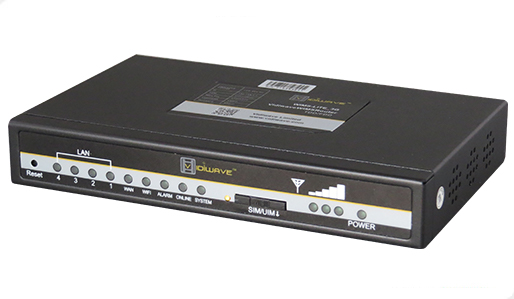

WIMS Lite
Client Module - Automotive
3G/WLAN Wireless Router
Key Features
3G/4G LTE data transmission
Active auto connect
Embedded watchdog , Auto recovery
2*2 4G/WIFI MIMO antenna
Integrate 3G/4G LTE,WIFI,GPS feature
One WAN, Five LAN(1LAN/1 Gbit LAN & 4 LAN/100Mbps) ports, Support VLAN,LAN Ethernet port
One console port, One USB port,RS232 or RS485 Interface,4 line GPIOs
SD data storage (Optional)
With two SIM card slot
Remote management platform
Supports wifi 802.11AC, 1.2Gbit
Supports 50 WiFi users sharing
Firmware version: Linux or Openwrt
Download the full technical specific datasheet in PDF format
View all products in this range
